CVH-FFT6541-18-W 18" Slim Fit Tip-Out Tray, White
Details
Details

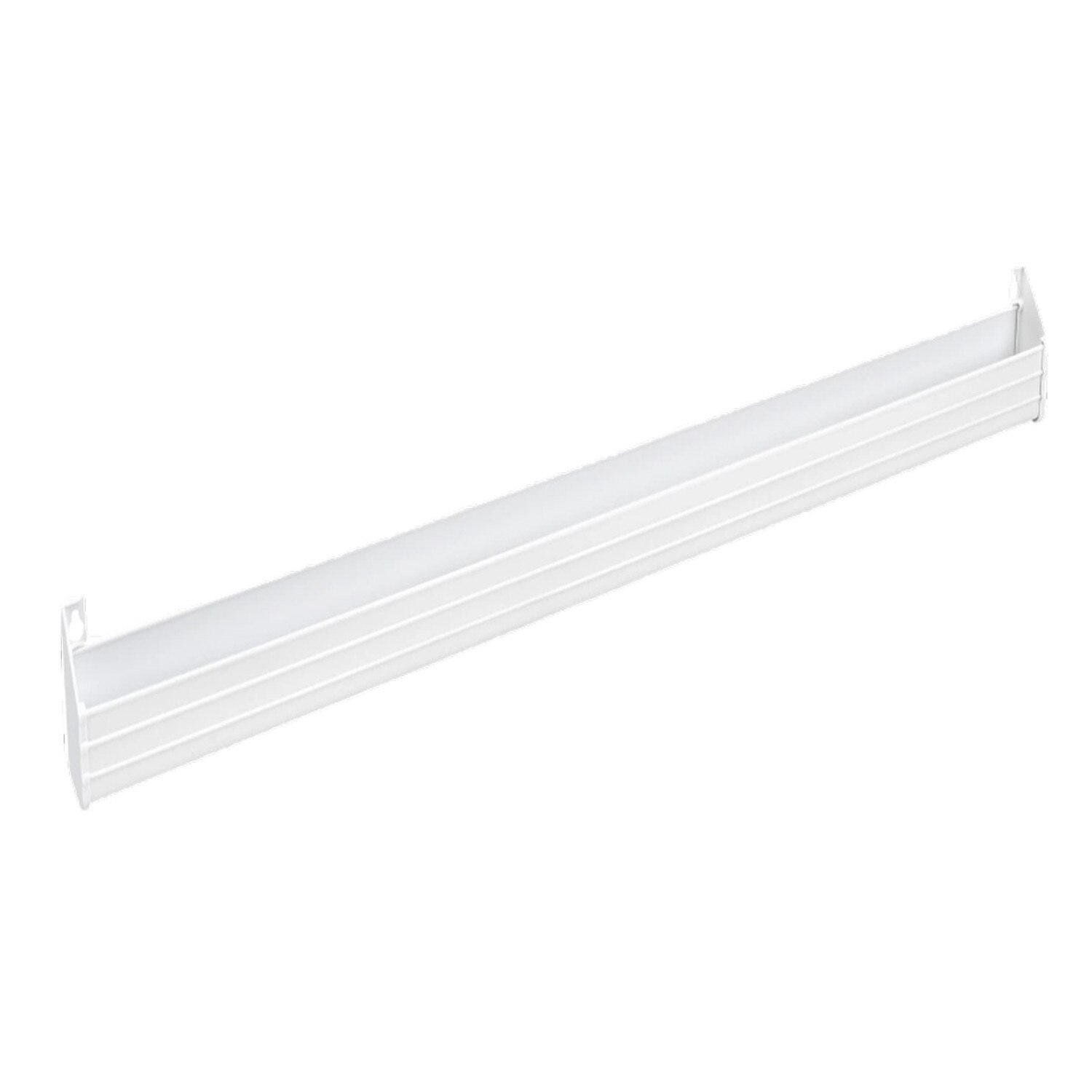

18" Slim Fit Tip-Out Tray
White | Glossy Polystyrene | Made in USA | TSCA Title VI Compliant
The 18" Slim Fit Tip-Out Tray is a space-saving storage solution engineered for RV cabinetry. Designed to utilize the often-wasted space in front of the sink, this injection-molded tip-out tray provides convenient access to small items while keeping countertops clear. Its slim profile fits cleanly into both face frame and frameless cabinet configurations, making it an ideal OEM component for new RV builds and retrofits.
Physical Specifications
Tip-Out Swing Angle: 36° Depth: 29/32" Height: 3⅝" Minimum Cabinet Opening Width: 19½"
Minimum Cabinet Opening Requirements
Face Frame Cabinet Depth: 2½" minimum Height: 4" minimum
Frameless Cabinet Depth: 2½" minimum Height: 4" minimum
Product Specifications
Material: Polystyrene Color: White Finish: Glossy Construction: Injection molded polymer Country of Origin: United States TSCA Title VI Compliant: Yes Order Increment: 1 unit
Installation Requirements
Note: Requires a minimum of 2¾" clearance between the back of the door and the front of the sink. Cabinet opening must be 19½" wide or larger for proper fit and function.
